LX62TU 파이프 절단기
본문

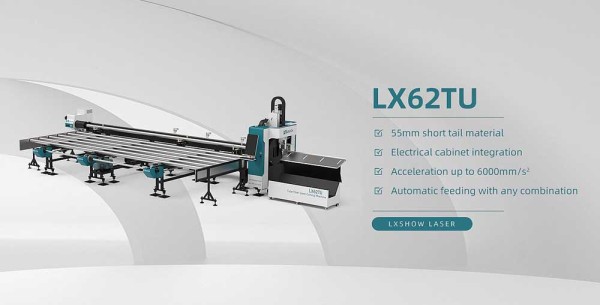

Model : LX62TU Fiber laser cutting machine
Working Area : 20-220mm diameter, 6m length tube processing
Laser Power : 3000W
Laser Generator : MAX
Laser Wave Length : 1064nm
Maximum Idle Speed : 80r/min
Maximum acceleration :0.8G
Position Accuracy : ±0.02mm/m
Repeat Positional Accuracy : ±0.01mm/m
Cutting Thickness : ≤18mm Carbon steel; ≤10mm Stainless steel
Control System : Bochu FSCUT 5000B
Position Type : red dot
Power Consumption : ≤21 KW
Working Voltage : 380V /50Hz
Auxiliary Gas : oxygen,nitrogen,air
Working life of fiber module More than 100,000 hours
Fiber laser cutting head Raytools BM110
Cooling System S&A/Tongfei/Hanli industrial water chiller
Work Environment 0-45°C, Moisture 45-85%
Delivery time 20-25 work days (According to actual season)
