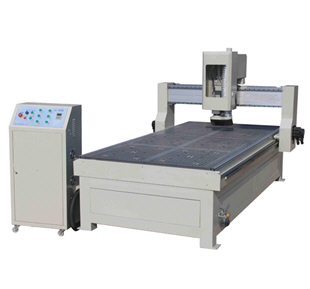

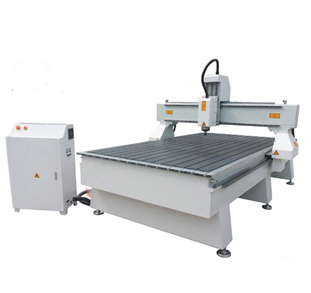

Woodworking CNC Router AOL1325 is a kind of woodworking CNC Router which is widely used in process for single lines, milling, 3D cutting and engraving. AOL manufactures and sells a diverse line of woodworking CNC Router. It can provide an affordable CNC Router to fit what your need!
Features :
1.Integrally cast lathe bed, robust and without distortion
2.Y axis double motor driving ensures stable and smooth movement of the machine
3.High precision rack gear transmission ensures fast speed and high accuracy
4.Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate
5.Spindle with high power enables vigorous cutting strength
6.Function of continuous working at stop point by power failure
Parameters:
Working Area: 1300*2500mm（4.3’*8.3’）
Max Moving Speed: 30000mm/min
Max Engraving Speed: 20000mm/min
Positioning Accuracy:<0.05/300mm
Working Dictate: G Code
Spindle: 3.0KW Water Cooling (Optional: HSD 3.0KW, HSD 4.5KW, HSD6.0KW)
Spindle Speed: 6000-24000rpm
Transmission: XY Rack Gear, Z Ball Screw
Voltage: AC220/50HZ (380V)
Consumption Power: <1900W (Without Spindle)
N.W. 720KG; G.W: 800KG
Packing Size: 1970*3100*1800mm
