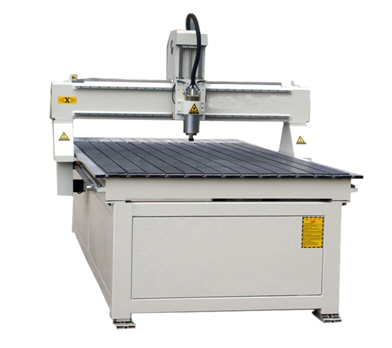

Advertising CNC RouterAOL1224
본문
Features of Advertising CNC Router AOL1224:
★ Integrally cast lathe bed, robust and without distortion
★ Y axis double motor driving ensures stable and smooth movement of the machine
★ High precision rack gear transmission ensures fast speed and high accuracy
★ Imported linear square guide rail ensures high accuracy and maximum work load
★ Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate
Parameters of CNC Router AOL1224:
Working Area: 1200*2400*100mm
Max Moving Speed: 30000mm/min
Max Engraving Speed: 20000mm/min
Hold Method: Clamps
Positioning Accuracy:＜0.05/300mm
Working Dictate: G Code
Spindle: 3.0KW Water Cooling (Optional: HSD 3.0KW, HSD 4.5KW, HSD6.0KW)
Spindle Speed: 6000-24000rpm
Collect: ER20
Transmission: XY Rack Gear, Z Ball Screw
XYZ Guide Rail: Linear Square Rail
Voltage: AC220/50HZ (380V)
Consumption Power: ＜1900W (Without Spindle)
N.W. 720KG; G.W: 800KG
Packing Size: 8.5CBM(1970*3100*1800mm)
